Press Brake Laser Guarding & Safety Solutions
Maximum Productivity. Absolute Operator Safety.
Unlike general-purpose light curtains, our advanced laser systems are engineered specifically for press brakes. While light curtains simply block a zone, our laser beams continuously monitor the area directly beneath the moving ram. They are designed to recognize the die area, allowing for complex bending without triggering false safety stops.
The Core Benefits:
Full Speed Production: Maintain high-speed closing until just millimeters above the part.
Complex Geometry Support: Bend box shapes and deep flanges without the system blocking the machine.

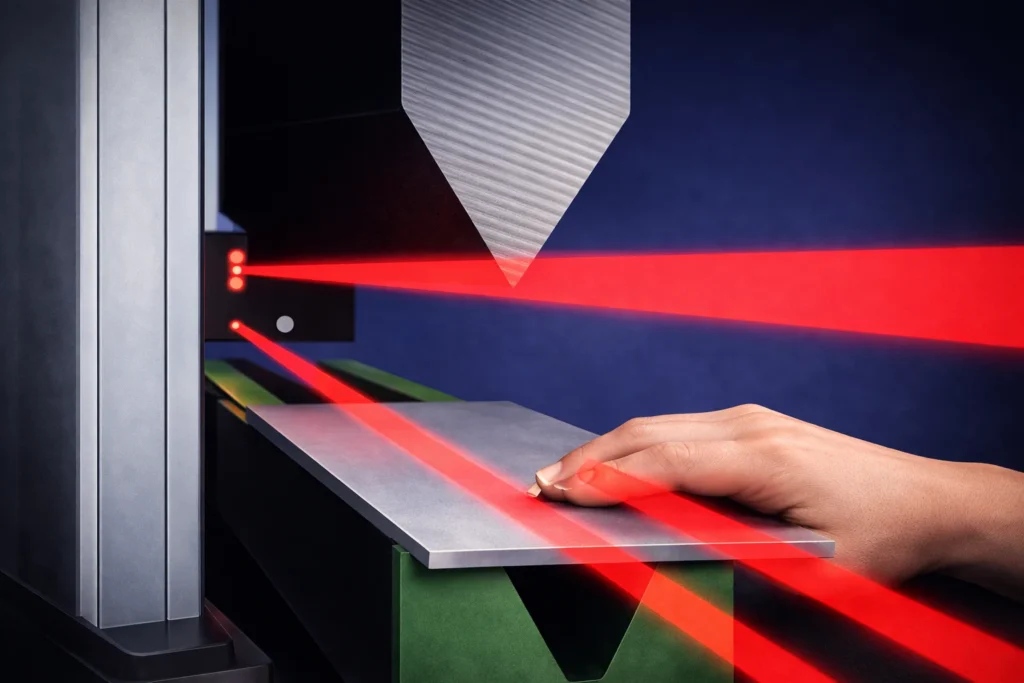

Smart Collision Avoidance: The system differentiates between your workpiece and an actual obstacle (like an operator’s hand

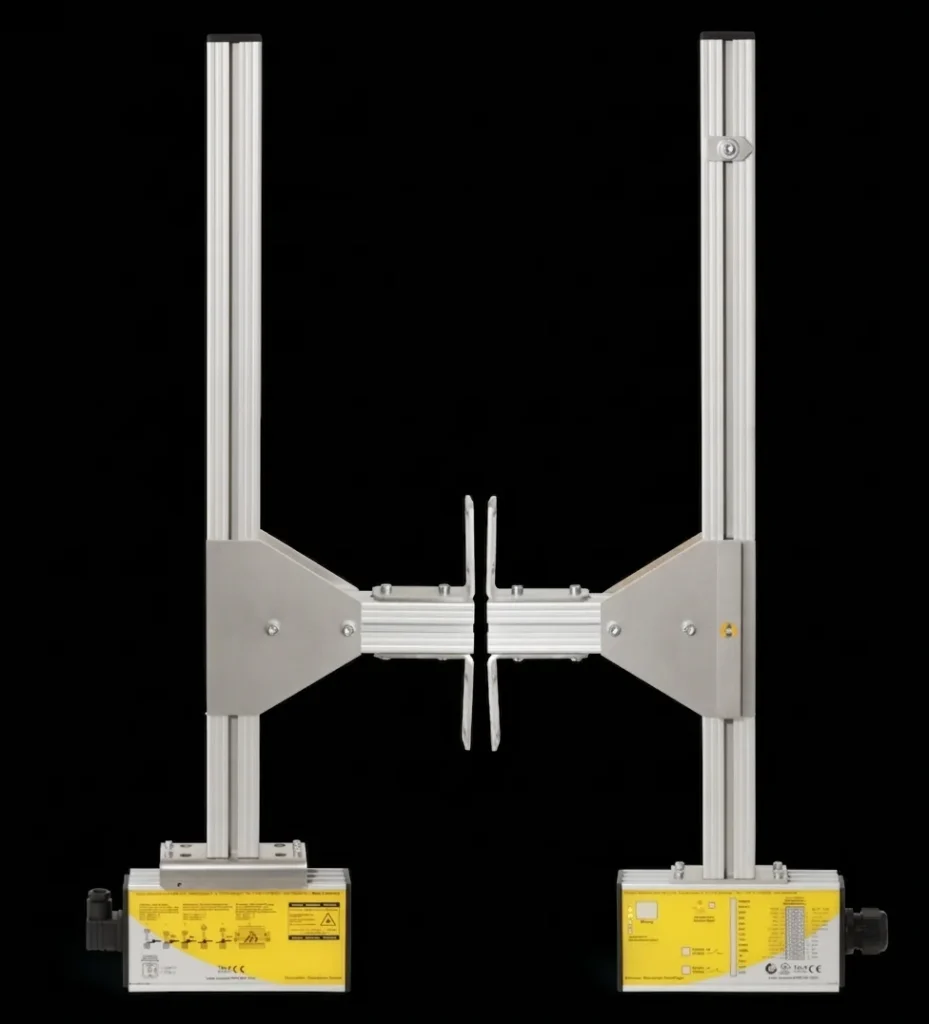

System 1

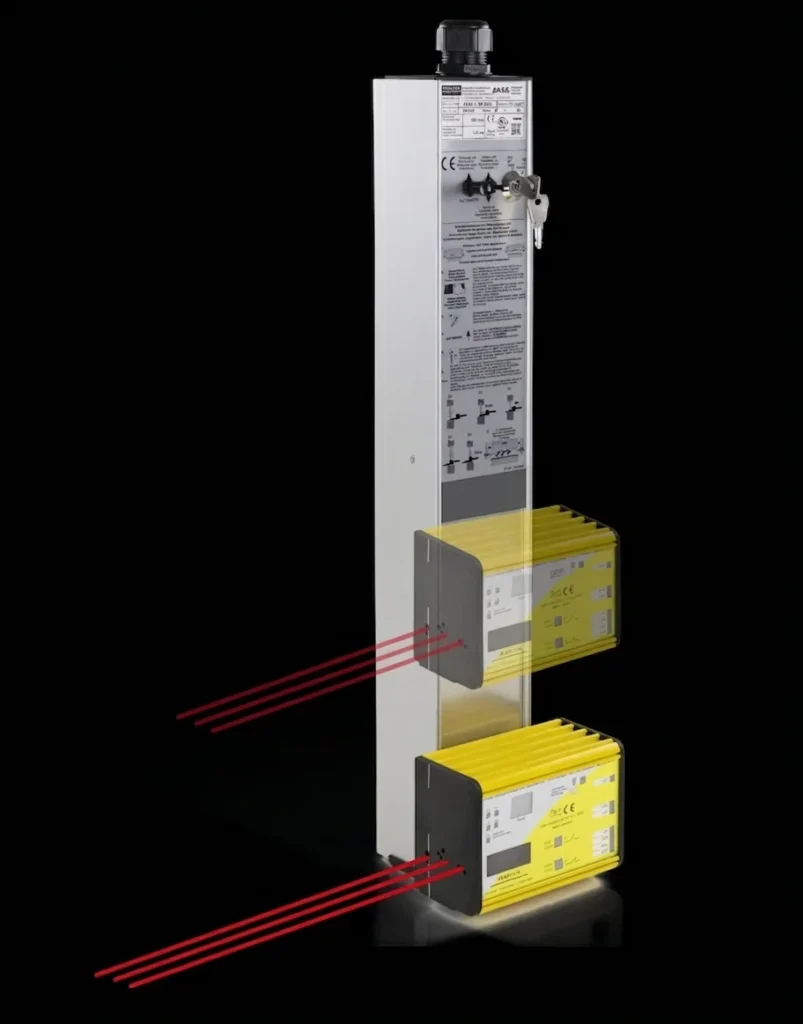

System 2

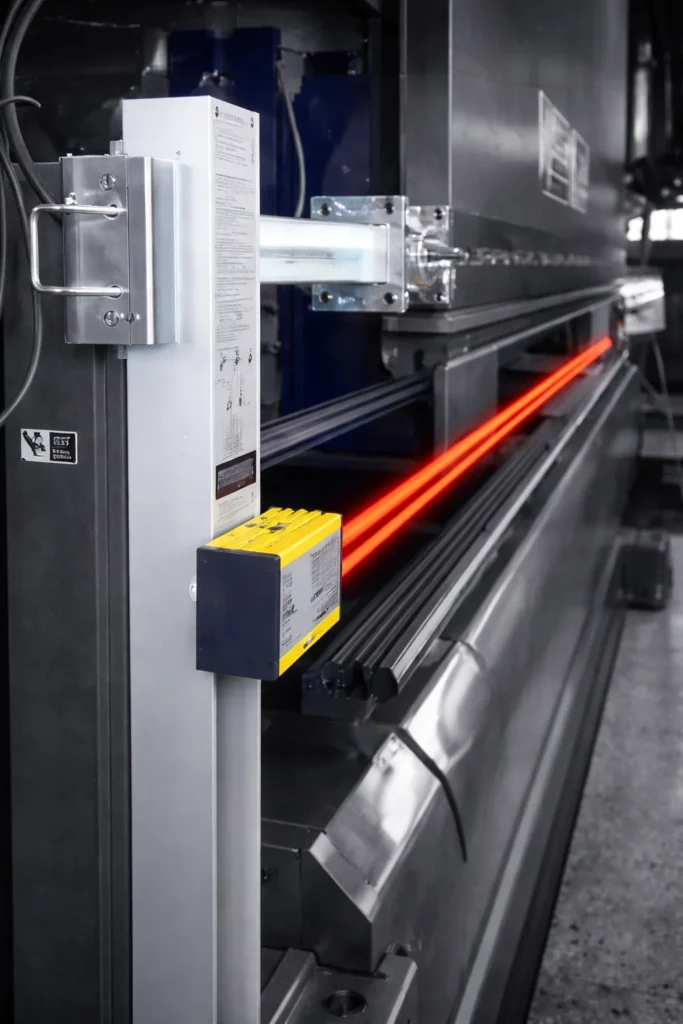

System 3
Safety System Comparison
| Feature | System 1 (Manual) | System 2 (Semi-Auto) | System 3 (Elite 3D) |
| Controller Integration | Yes | Yes | Yes |
| Punch Change Alignment | Manual Bracket Adjustment | Automatic Self-Align | Automatic Self-Align |
| Box Bending Support | Yes | Yes | Yes |
| Production Speed | Sufficient / Standard | Sufficient / Standard | Fastest Cycle Times |
How They Work: Choosing the Right Protection
Systems 1 & 2: Responsive Safety Integration When these systems detect an obstacle, the machine instantly pauses high-speed downward travel. The operator must then remove the obstacle or choose to continue the stroke at a restricted safety speed. In certain cases, such as bending deep boxes or complex flanges, this may require entire or part of bending phase to be performed at this slower safety speed to remain compliant.
System 3: The “Muting” Solution System 3 utilizes more advanced safety logic. Before beginning a production run, the system performs a “Teach-In” stroke to measure the exact travel distance between the punch and the workpiece.
By combining this real-time data with the CNC controller’s logic, System 3 can safely maintain fastest possible cycle times while meeting highest safety standards.
